Tamiya
TAMIYA M-07R CHASSIC KIT 47520
TAMIYA M-07R CHASSIC KIT 47520
Regular price
HK$1,480.00
Regular price
Sale price
HK$1,480.00
Unit price
per
Couldn't load pickup availability

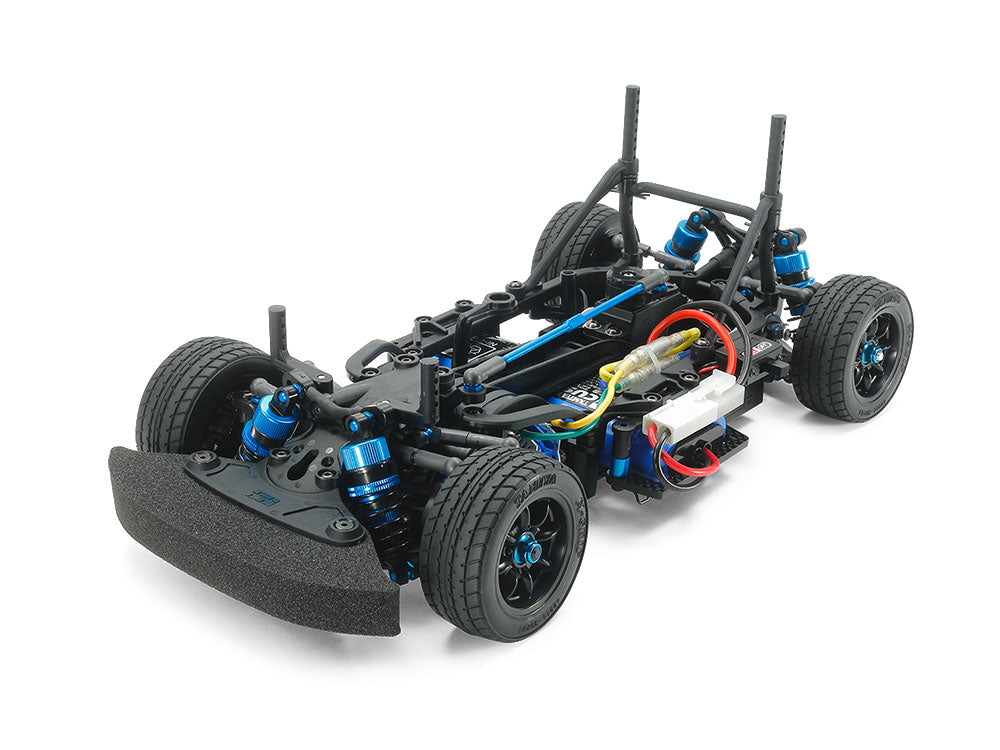

This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fiber battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminum cup joints, hard coated aluminum pinion gear and more.
Featured Components
★Carbon fiber battery holder* ★Rear stabilizer ★TRF special dampers (hard black coating) ★Double-cardan drive shafts (33mm) ★High-traction lower deck ★Reinforced C parts (uprights) ★Reinforced D parts (suspension arms) ★3x106mm aluminum turnbuckle shafts ★Aluminum joint cups ★Clamp-type aluminum wheel hubs (5mm) ★2.6mm diameter titanium-coated shafts ★46mm titanium-coated shafts ★06 module aluminum pinion gear (20T) ★Full ball bearings ★Hi-torque servo saver (black)
*dedicated component
Specifications
●Length: 332mm (including bumper) ●Width: 164mm ●Wheelbase: 225mm or 239mm (selectable) ●Monocoque frame ●Front-midship motor, front-wheel drive ●Oil-filled gear differential ●3-piece steering tie-rod ●4-wheel independent double wishbone suspension ●TRF special dampers ●Gear ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears) ●Contact your local Tamiya Agent regarding the ESC.
Separately Required Items
★Compatible body ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Type 540 Motor ★Battery Pack & Charger
Featured Components
★Carbon fiber battery holder* ★Rear stabilizer ★TRF special dampers (hard black coating) ★Double-cardan drive shafts (33mm) ★High-traction lower deck ★Reinforced C parts (uprights) ★Reinforced D parts (suspension arms) ★3x106mm aluminum turnbuckle shafts ★Aluminum joint cups ★Clamp-type aluminum wheel hubs (5mm) ★2.6mm diameter titanium-coated shafts ★46mm titanium-coated shafts ★06 module aluminum pinion gear (20T) ★Full ball bearings ★Hi-torque servo saver (black)
*dedicated component
Specifications
●Length: 332mm (including bumper) ●Width: 164mm ●Wheelbase: 225mm or 239mm (selectable) ●Monocoque frame ●Front-midship motor, front-wheel drive ●Oil-filled gear differential ●3-piece steering tie-rod ●4-wheel independent double wishbone suspension ●TRF special dampers ●Gear ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears) ●Contact your local Tamiya Agent regarding the ESC.
Separately Required Items
★Compatible body ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Type 540 Motor ★Battery Pack & Charger
-
A close-up on the smooth front suspension, with TRF Special Dampers, double-cardan shafts and more!
-
Reinforced suspension arms and uprights give great durability. The kit includes a rear stabilizer.
-
This image gives you a good look at the carbon fiber battery holder, a dedicated design for this kit.
-
The high-traction lower deck was made to extract just the right amount of flex, for great road holding.
