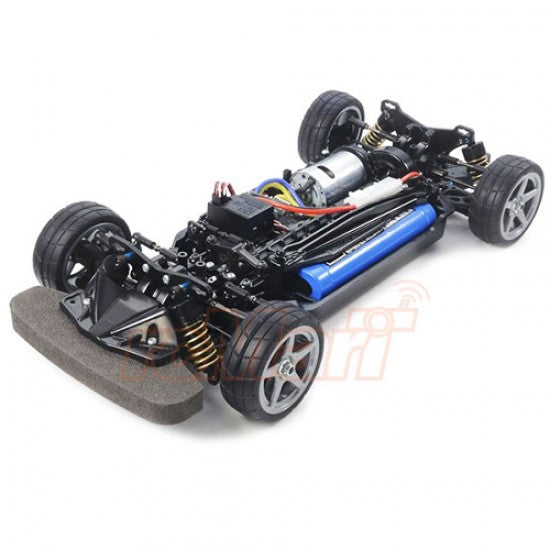

Tamiya 1/10 TT02S TT02 Type-S 4WD EP Touring Chassis Kit

Description:

This is the TT-02 Type-S Chassis, which builds upon the shaft-driven efficiency of the original TT-02 4WD platform and provides it with new suspension parts plus other race-proven features. This enhanced version of the TT-02 is the perfect chassis for hobbyists looking to make the step up from beginner-level chassis to more advanced set-ups. This is the perfect entry level kit for hobbyists looking to enter club level R/C racing and it's perfectly suited for the Tamiya Championship Series in the Spec GT class intended for entry level racers.

The TT-02 chassis platform is the successor to the TT-01 as it incorporates many new features to make it even easier for the new R/C kit builder to assemble and learn from. The TT-02 chassis performs well as cornering and overall speed has been enhanced to take advantage of new electronics available on the market. In addition to the TT-02 being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Ho-Up-Options available to increase the cars speed and performance.

Feature:

• 3mm thick Front/Rear FRP Damper Stays (NEW part)
• Metal Suspension Mounts (NEW part)
• Item 51297 Reversible Suspension Arms (Long)
• CVA Oil Shocks
• Turnbuckle Shaft Front/Rear Upper Arms
• Turnbuckle Shaft Steering Tie-Rods
• Type 540 Torque Tuned Motor
• Item 51023 Medium-Narrow Racing Radial Tires
• Metal Cup Joints Metal Drive Shafts
• Die Cast Aluminum Hex Wheel Hubs

• Scale: 1/10
• Construction type: Assembly kit
• Terrain use: On-road
• Drive-train: 4WD
• Drive type: Gearbox
• Drive line: Dog Bone
• Differential type: Gear
• Suspension: Fully independent double wishbone
• Steering mechanism: Bell-crank
• Shock damper: Oil-filled damper
• Shock damper material: Plastic
• Tire type: Rubber
• Tire tread: Radial
• Chassis material: Plastic
• Motor: 540-brushed type
• Bearings: Shielded ball bearing
• Adjustable camber: Fixed
• Adjustable toe angles: Front only
• Adjustable ground clearance: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: yes
• Adjustable track width: Fixed
• Adjustable shock angle: Yes
• Special feature 1: Item 51297 Reversible Suspension Arms (Long)
• Special feature 2: 3mm thick Front/Rear FRP Damper Stays
• Special feature 3: Type 540 Torque Tuned Motor
• Special feature 4: Metal Cup Joints Metal Drive Shafts
• Special feature 5: Die Cast Aluminum Hex Wheel Hubs
• Special feature 6: Turnbuckle Shaft Front/Rear Upper Arms
• Special feature 7: Item 51023 Medium-Narrow Racing Radial Tires
• Special feature 8: Rear toe-in is set to 3 degrees.
• Special feature 9: Metal Suspension Mounts
• Special feature 10: Torque Tuned Motor

Specification:

• Length: 385mm
• Width: 187mm
• Wheelbase: 257mm

Include:

• Tamiya 1/10 TT02S TT02 Type-S EP Chassis Kit (1 Set)
• Tires & Wheels
• Motor
• Instruction

Required:

• 1/10 Body
• ESC
• Radio
• Servo
• Charger
