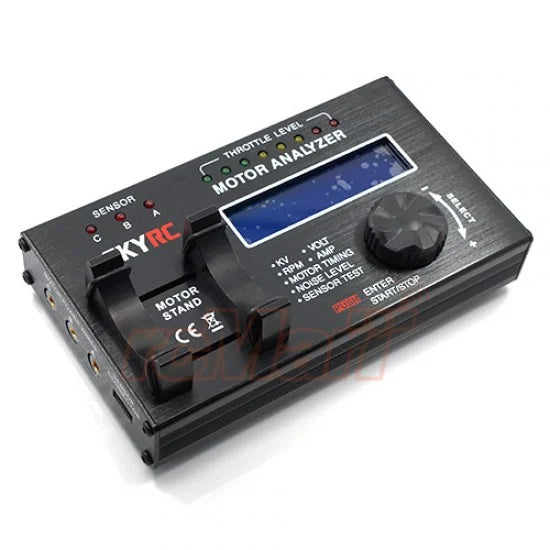

SKYRC Brushless Motor Analyzer BMA-01

SKYRC Brushless Motor Analyzer BMA-01

HK$650.00

HK$650.00

銷售額售罄

產品子類

數量

Specifications

Net Weight

282gram (Without Cabel)

Input Voltage

7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)

LCD Display Screen

Blue Backlight Background,
White Text, 16 Characters X 2 Lines

KV Value Accuracy

+/- 3%

Motor Timing Accuracy

+/- 4%

Motor Timing Range

0-70°

Noise Level Measurement Range

60dB - 120dB

Supported Motor

Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)

Size

Length ： 80.6mm
Width ： 136.5mm
Height ： 24.5mm
