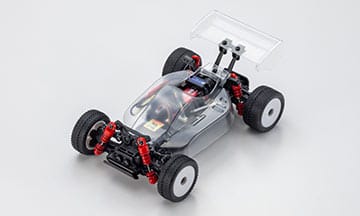

KYOSHO MINI-Z Buggy MB-010VE 2.0 SP Chassis Set 32294B

ABOUT THE PRODUCT
The MINI-Z Buggy VE 2.0 SP Chassis Set is equipped with an FHSS receiver unit and a brushless
ESC system that offers a cost-effective migration path for KT-531P based MINI-Z Readyset users.
The combination of the powerful maintenance-free SPEED HOUSE 85 8500KV brushless motor
and a brushless ESC that has been co-developed with Scorpion Power System leads you to
another dimension of Mini buggy racing! You can set up the ESC parameters using a PC via an
optional setting cable (No. 82082). The SP chassis set is equipped with the MBW033 Under
Guard, MBW034 Front Joint Gear, MBW035 Read Joint Gear, and MZW446 Gyro Unit as
standard.

KEY FEATURES
◆ Brushless ESC developed by Scorpion Power System
◆ 8500KV high-power SPEED HOUSE 85 brushless motor
◆ Super smooth all-wheel-drive system fully supported with 15 ball bearings
◆ ESC setup via optional setting adapter (No.82082 VE Setup Cable)
◆ Refined ESC’s throttle program realizes smoother power control.
◆ Gyro unit, front and rear metal joint gears equipped as standard.
SET CONTENTS
*Factory-assembled chassis equipped with FHSS receiver board and brushless ESC board
*Pinion gears (11T, 13T, 15T) *Spur gears (33T, 35T) *Pinion gear tool *Wheel wrench *Pairing
stick
REQUIRED FOR OPERATION
*Syncro KT-531P transmitter *4 x AAA dry cell or NiMH batteries for chassis. *Batteries for
transmitter *Paint for polycarbonate body
TECHNICAL DATA
*Scale: 1/24 *Length: 163mm(M) *Width: 105mm *Height: 46mm *Chassis Type: MB-010VE
*Wheelbase: 115mm *Tread (F): 89mm *Tread (R): 89mm *Weight: Approx 200g *130 class
8500KV brushless motor
