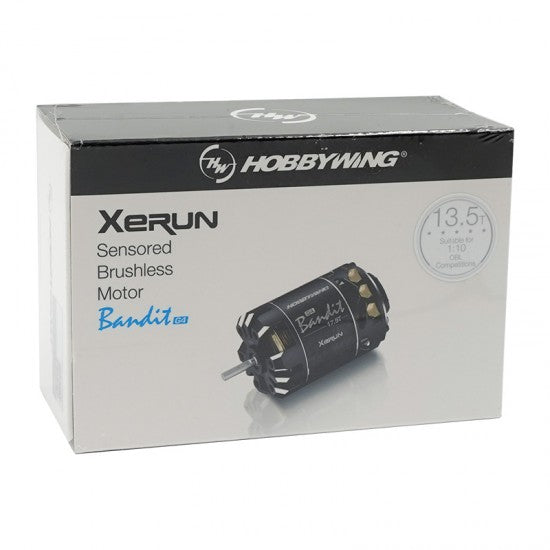

Hobbywing XERUN Bandit G4 13.5T 3200KV Outlaw 540 Sensored Brushless Motor 30401857

Description:

This is Hobbywing XERUN Bandit G4 13.5T 3200KV Outlaw 540 Sensored Brushless Motor. The motor has a fully-adjustable mechanical timing from 20 to 60 degrees. The motor is able to provide insane power to meet the power requirements of various applications when the timing is adjusted to the maximum (60 degrees). The motor adopts a fully exposed stator core structure. The outer stator core is directly exposed to maximize heat dissipation performance. The motor adopts a modular structure design. It makes daily cleaning and maintenance convenient, effectively prolonging the life-span of the motor and maintaining high efficiency of the motor.

Feature:

• For: 1/10 Outlaw Competition

• Material: Aluminum

• Color: Black

• More power than the Xerun Bandit G2R series

• Dual sensor design for optimal wiring in the RC car

• New motor housing with optimized cooling holes

• Adjustable timing from 20-60

• High precision manufactured rotor

• High temperature tolerance of the winding

• Easy to disassemble for maintenance

Specification:

• Winding: 13.5T

• Type: Sensored Brushless

• Speed: 3200KV

• Power: 270W

• Current/max power: 34A

• Idle current: 4.35A

• Number of cells LiPo: 2-3S

• Number of poles: 2

• Timing adjustable: 20-60

• Diameter: 35.8mm

• Length: 53.9mm

• Shaft diameter: 3.175mm

• Shaft length: 14mm

• Weight: 181.4g
